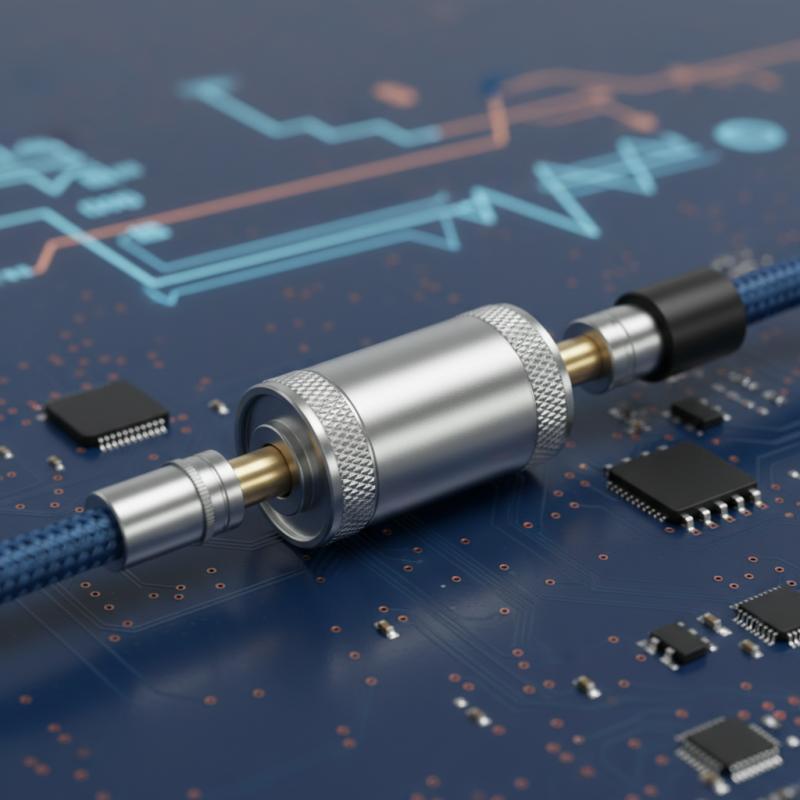

What is a Coaxial Attenuator and How Does it Work?
A Coaxial Attenuator is a crucial component in RF (radio frequency) systems. It reduces signal strength without distorting the waveform. Understanding its function offers valuable insights into signal management.
In many applications, a Coaxial Attenuator helps optimize performance. For instance, it ensures signals remain at appropriate levels. This prevents damage to sensitive equipment. However, overuse can lead to significant signal loss. Finding the right balance is key.
Some may overlook the importance of a Coaxial Attenuator. Users might assume all cables manage signals equally. This misconception can result in inefficient systems. Reflecting on these details enhances our understanding of RF technology.
What is a Coaxial Attenuator?
A coaxial attenuator is an electronic component designed to reduce the power of a signal without altering its waveform. It is commonly used in radio frequency applications. These devices help manage signal levels within circuits, ensuring that receivers do not get overwhelmed by strong signals. A typical coaxial attenuator consists of resistors, which are arranged in specific configurations.
These resistors dissipate some of the energy as heat. This can prevent distortion in the transmitted signal. When using a coaxial attenuator, one must consider the desired level of attenuation. It’s not always straightforward. Attenuation values vary based on the component design and application needs. If you require a specific attenuation and choose the wrong device, you might encounter issues.
Additionally, inappropriate use can lead to unexpected results. For instance, too much attenuation could degrade the signal quality. Users should always evaluate their signal paths carefully. Knowledge about how each coaxial attenuator works is crucial. Proper matching of components can help alleviate some common issues. Understanding this device is important in achieving optimal performance in any setup.
Components and Construction of Coaxial Attenuators
Coaxial attenuators are essential in RF systems. They reduce signal strength while maintaining signal integrity. Key components of coaxial attenuators include resistors, connectors, and housings. Resistors are often made from carbon or metal film. They play a vital role in defining the attenuation level. Connectors securely link the attenuator to other devices. Housings protect internal elements from environmental factors.
The construction of a coaxial attenuator is intricate. Precision is crucial for effective performance. The physical layout affects both insertion loss and return loss. A well-designed attenuator will exhibit minimal reflections. Reports suggest that quality coaxial designs can achieve less than 0.5 dB of insertion loss. Always ensure proper grounding to avoid unwanted noise.
Tips: Choose the right resistor type based on frequency, as performance can vary. Test your setup frequently to ensure optimal operation. A good design considers thermal management, as overheating can lead to failure.
Coaxial Attenuator Performance Analysis
This chart displays the performance characteristics of a coaxial attenuator, including its operating frequency, insertion loss, return loss, and power handling capacity. This data can help engineers understand the effectiveness and efficiency of coaxial attenuators in various applications.
Principles of Operation: How Coaxial Attenuators Work
Coaxial attenuators are vital components in communication systems. They reduce signal strength without distorting the signal's quality. This function is crucial in maintaining optimum performance in various applications.
A coaxial attenuator operates by introducing resistance into the signal path. This resistance dissipates some energy as heat. It appears simple but can be quite complex in design. The level of attenuation depends on the resistor values used. This can sometimes lead to unexpected outcomes in signal integrity, especially if the wrong values are chosen.
The construction of a coaxial attenuator involves precise engineering. Its design often includes multiple resistors arranged in specific configurations. Factors such as frequency and temperature can influence the performance. These variables must be meticulously considered to ensure effectiveness. Misjudging these elements can lead to inefficient signal management, which may impact the entire system.
What is a Coaxial Attenuator and How Does it Work?
| Attenuator Type | Attenuation (dB) | Frequency Range (GHz) | Power Rating (W) | Impedance (Ohms) |
| Fixed Attenuator | 3 | DC - 6 | 1 | 50 |
| Variable Attenuator | 0 - 20 | DC - 4 | 2 | 75 |
| Step Attenuator | 1, 5, 10 | DC - 12 | 1 | 50 |
| Programmable Attenuator | 0 - 30 | 10 MHz - 6 | 0.5 | 50 |
Applications of Coaxial Attenuators in Communication Systems
Coaxial attenuators are vital in communication systems. They reduce signal strength without distorting the signal's shape. This ensures that the system operates efficiently, which is crucial for high-frequency applications. The global RF and microwave components market, valued at over over $20 billion in 2023, highlights the growing importance of such components.
In many communication setups, coaxial attenuators help manage signal levels. With the proliferation of 5G technology, the demand is increasing. Studies indicate that proper attenuation can improve signal quality by up to 30%. This is significant in crowded bandwidth environments. The struggle to minimize interference and maximize clarity remains a challenge for engineers.
However, not all setups utilize these devices effectively. Some systems experience signal degradation due to improper attenuator selection. Use of too much attenuation can lead to weak signals, while too little can cause distortion. It's essential to find the right balance. This reflective journey emphasizes the need for ongoing optimization in communication designs.
Standard Specifications and Performance Metrics in Attenuators
Attenuators play a crucial role in radio frequency (RF) applications. Their primary function is to reduce signal strength while maintaining signal integrity. Understanding standard specifications in attenuators is vital for effective use. Power rating is one major metric. It indicates how much power an attenuator can handle. Exceeding this limit may cause damage, leading to poor performance or failure.
Another important aspect is insertion loss. This measures the signal loss as it passes through the attenuator. A lower insertion loss indicates better performance. Additionally, frequency response should not be overlooked. It outlines how various frequencies behave as they pass through the device. Not all attenuators perform equally at different frequencies. Knowing this can prevent miscalculations.
Lastly, return loss is significant. It indicates how much signal is reflected back. A high return loss is desirable, denoting efficient coupling. Operators often find it challenging to balance these metrics. The ideal attenuator for one application may not suit another. Continuous assessment is necessary for optimal performance, which sometimes reveals shortcomings. Understanding these specifications forms the foundation for effective RF system design.
